Product description
The GA800AC sliding gate opener set can provide driving force for the opening and closing motion of the sliding door, with a maximum gate weight of up to 800 kilograms and a gate length of up to 8 meters.
Product characteristics
Soft start and slow stop.
Automatic reverse after encountering obstacles.
Motor output force, stall force, slow stop distance are adjustable.
Automatic close with waiting time adjustable.
Partial opening for pedestrian passes.
| Model | GA800AC |
| Power supply | 110VAC/60Hz; 220VAC/50Hz; DC24V |
| Motor power | 370W |
| Gate Moving Speed | 12m/min |
| Maximum Loading Weight | 800kgs |
| Remote Control Distance | ≥30m |
| Remote Control Mode | Single button mode / Three button mode |
| Limit switch | Spring/Magnetic limit switch |
| Working Duty | S2, 20min |
| Recording of up remote controls | 25 |
| Frequency | 433.92MHz |
| Working Noise | ≤56dB |
| Working temperature | -20℃~+70℃ |

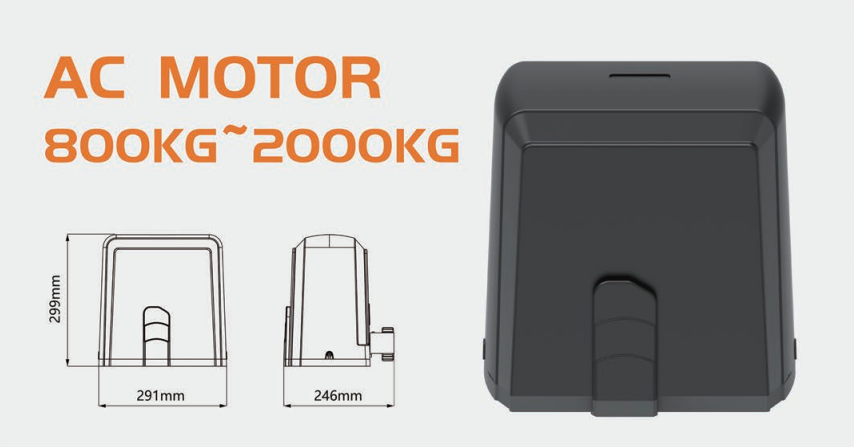

| Overlook size | 291x246x299mm |
| Package Weight | 15kgs |
Standard Unit
Gate Motor
Control board & box
2 pcs remote controls
Mounting plate
Manual release key
User manual
Bolts & nuts
Optional Accessaries
- Metal Gear Rack & Nylon Gear Rack are optional, you can order the rack length accordig to your gate length;
- Photo beam sensor;
- Keypad systems;
- Push button;
- Warning light;
Additional remote controls: Spare/Additional remotes for the automatic gate kit, these will need to be paired to the motor.
Infrared photocell: Detects pedestrians, vehicles and objects that cross an infrared beam and prevents the gate from closing.
Wireless keypad: Allows secure access through the gate used with a user set code.
Wired control: Allow users to control the opening and closing of the door through an external push-button.
Alarm lamp: Alerts people near the gate and users that the gate is in operation.
