DC12V Solenoid Mechanical Dropbox Card Collector Internal Circuit Control Interface

  • 1
  • 2

Brand Name : SINOMATIC

Model Number : DBX100

Certification : CE

Place of Origin : Shenzhen, China

MOQ : Sample order accepted

Price : Negotiable

Payment Terms : T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay

Supply Ability : 1000 pcs/ month

Delivery Time : 5~10 days

Packaging Details : Crate

Mechanical transmission mode : DC12V Solenoid

Collection bin dimension : 13.5 x 13.5 x 29 cm

Card Capacity : Maximum 280 cards

Cabinet diameter : 219mm

Net weight : 16 kg

Solenoid Power supply : DC12V±10％

Contact Now

DC12V Solenoid Mechanical Dropbox Card Collector

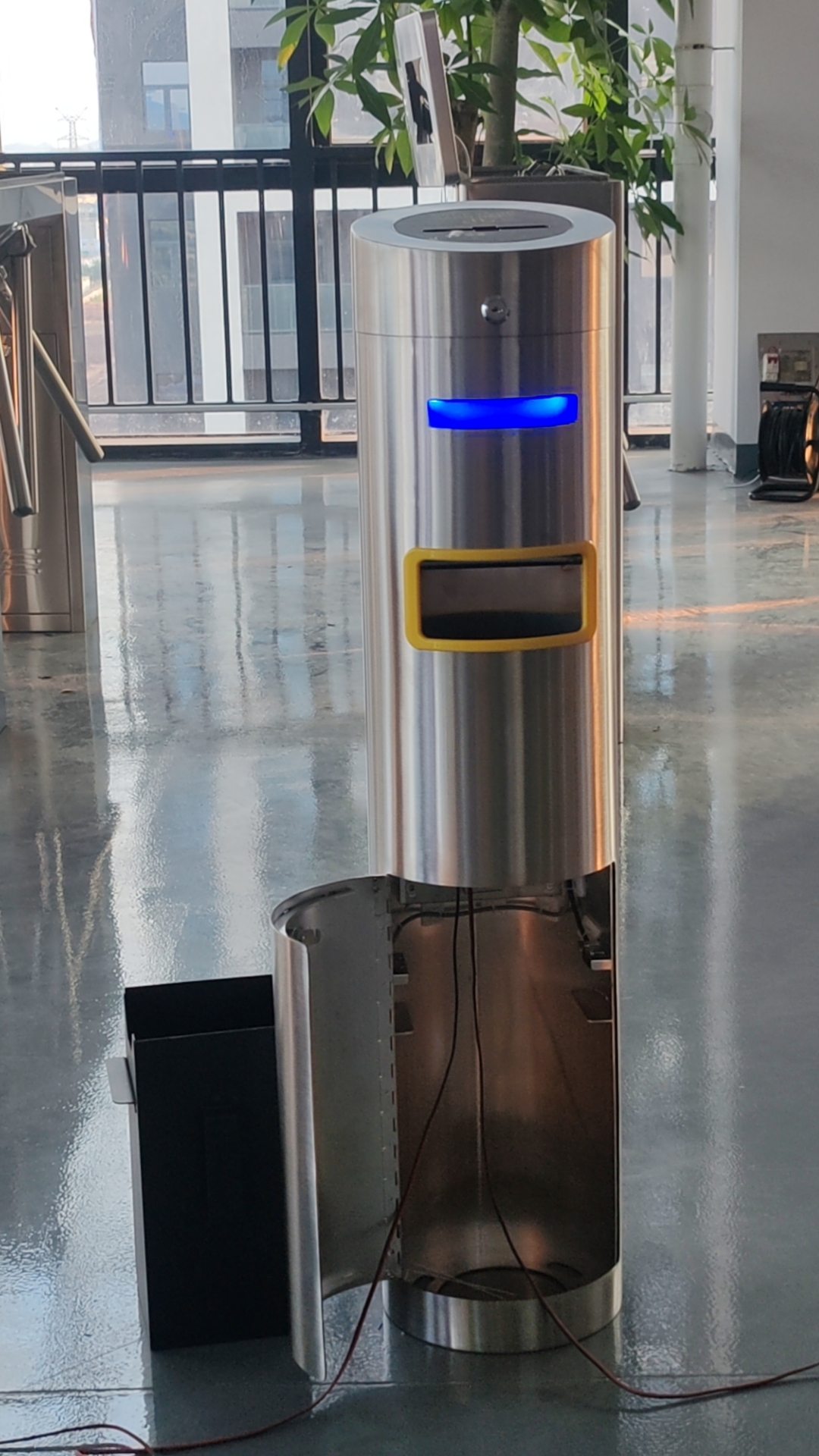

The DBX100 is a dropbox-type card collector designed for access control systems. Users simply drop their visitor cards into the unit to gain entry or exit access. This cost-effective solution integrates seamlessly with any access control reader and is ideal for ticketing and visitor management applications.
Product Overview
The DBX100 streamlines visitor management for residential communities, commercial buildings, and facilities. It efficiently handles residents, visitors, contractors, and employees entering or exiting controlled areas. Note: This unit is designed for indoor use only and is not suitable for outdoor installation or coastal environments.
Key Applications
Visitor Management: When integrated with visitor management software, the DBX100 enables automatic visitor check-out. Visitors can simply drop their cards into the unit instead of returning them to reception.
Ticketing Systems: Perfect for entrance fee collection where visitors receive proximity cards as tickets. Cards are collected and can be reused after the collection bin is emptied.
Technical Specifications
Description Parameter
Power Supply AC230V power input with built-in DC12V power supply
Power Consumption Idle: AC 0.04A, DC 0.01A
Operation: AC 0.28A, DC 4.71-4.74A
Indicator Lights Blue: Power On
Green: Valid Card
Red: Dropbox Fully Occupied
Collection Bin Dimensions 13.5 x 13.5 x 29 cm (holds up to 280 cards)
Maximum Card Size 10cm (W) x 9cm (H)
Main Features
  • Accepts cards up to 10cm wide
  • Compatible with any brand access control reader
  • Visual indicator lights display operational status
  • Key-operated top cover for maintenance access
  • Key-operated bottom door for collection bin removal
  • Automatic card rejection when collection bin is full
  • Seamless integration with visitor management software
  • Ideal for reusable ticketing systems
Download Product Datasheet DC12V Solenoid Mechanical Dropbox Card Collector Internal Circuit Control Interface
