Retractable traffic automatic electric road obstacles and puncture nails tire killer
SPECIFICATIONS
| Material | Q235 steel with painting | Spike Height | 15cm (can customized to 25cm) |
| Ip Protection | IP68 | Max Loading Weight | 80T |
| Color | Yellow and black, can be customized | Control Distance | Electric control, <1000Meters |
| Size | W500*L3000*H120 | Power Supply | 220V, single phase |
| Material Thickness | 12mm | Lifting Time | 2s |
| Spike Thickness | 10mm | Including | tyre killer, control box, installation accessories, remote control |
FUNCTIONS & FEATURES
1. Firm and anti-collision. The tyre killer body and spikes are made of 10mm thickness standard Q235
carbon steel with strong load-bearing and destructive power.The structure is firm and durable.
2. IP68 military protection standard.
3. Speedy and Low noise.The hydraulic tyre killer is hydraulically powered through both the raise and lower
cycles, taking much less time and lower level of noise to operate.Typical operating (opening /closing) time
is 1-2 seconds.
4. Safe and Reliable.Single phase drive motor, or a three phase motor to allow very high frequency of operation.
This is ideal for large car parks or busy sites. Environment protection, low power consumption and high reliability.
5. Flexible control method, The system support remote control and drive-by-wire typically. For remote control,
the controller is available to work 30 meters far away from the blocker device(depends on the radio communication
environment on site).
6. Back up solution,Support manual operate mode,the spikes can lift or fall on level place by manual when power-off.
7. Convenient maintenance. It is easy to check, test and fix the problem.
8. Functional and Manageable: Safety accessories like photocells, inductive loop detectors , beam sensor can
be integrated to the system very easily.
9. It can be installed with other access control elements (for example bollards, road barrier, turnstiles, fire alarm
system, traffic light) in order to achieve an access control check-point at the highest level of security.
10. Wide range of optional configurations: Can be custom designed to suit your requirements and can be built
in an almost infinite range of thickness and length to suit any roadway or level of security.

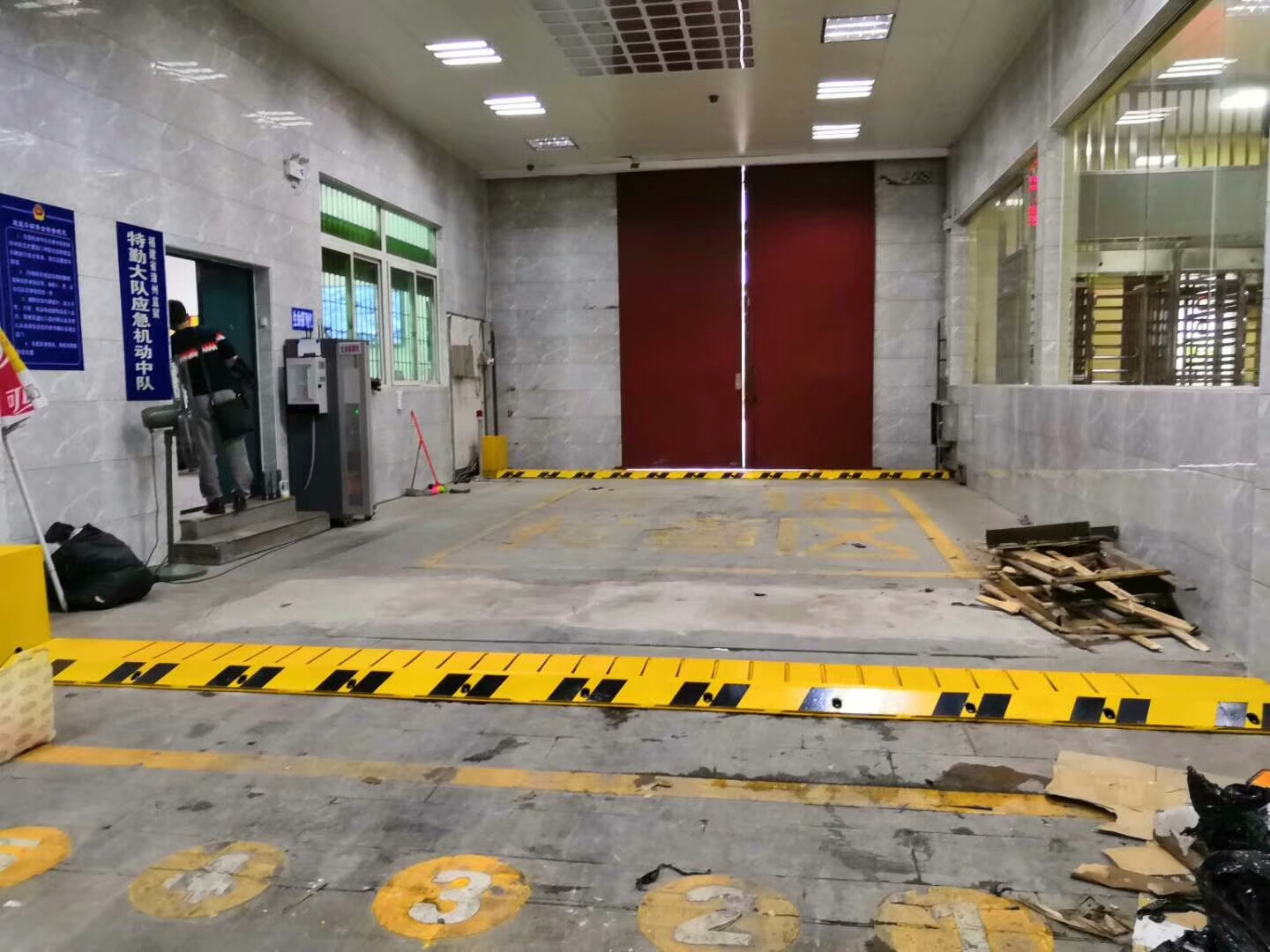

CASE REFERENCE
PRODUCTION PHOTO
PRODUCTION PROCESS
OUR FACTORY
Product Tags:
|
|
Puncture Nails Tire Killer , Traffic Automatic Electric Road Obstacles Retractable Images
|
